WS-208: Wall-Mounting the Remote Control

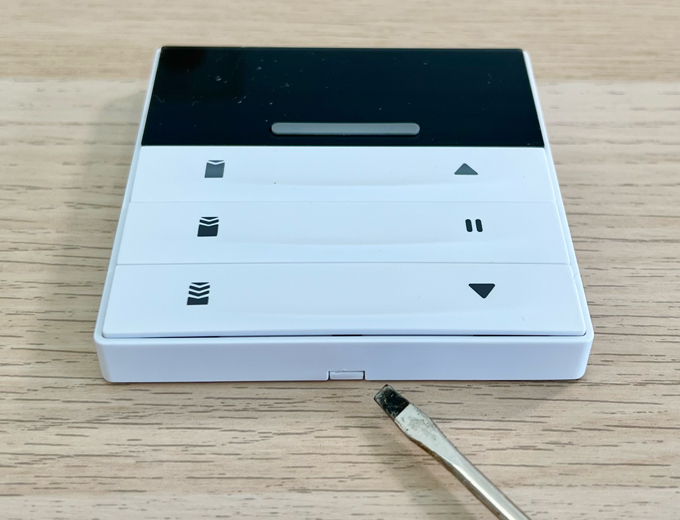

Place the wall remote control on a flat surface, facing you. Locate the notch at the bottom.

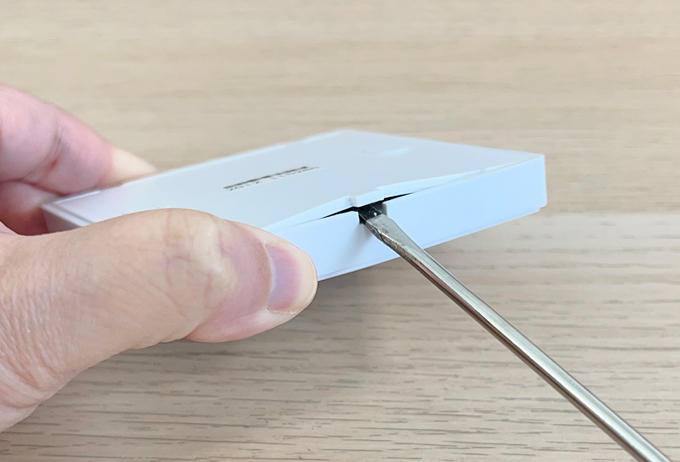

Turn the wall remote control so the back plate is facing you. Using a flathead screwdriver, insert it into the notch. Hold the wall remote control with one hand and tilt the screwdriver upward until the back plate pops open.

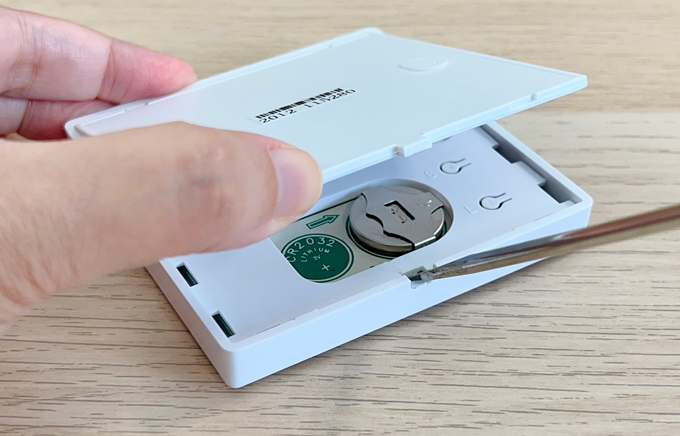

If the wall remote control isn’t powered on, insert or replace the batteries. If you need to pair blinds, complete the pairing process before mounting the remote to the wall.

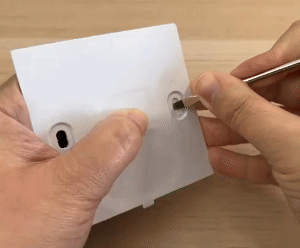

If there is an inner plastic piece on the mounting holes, remove it using your finger or a screwdriver.

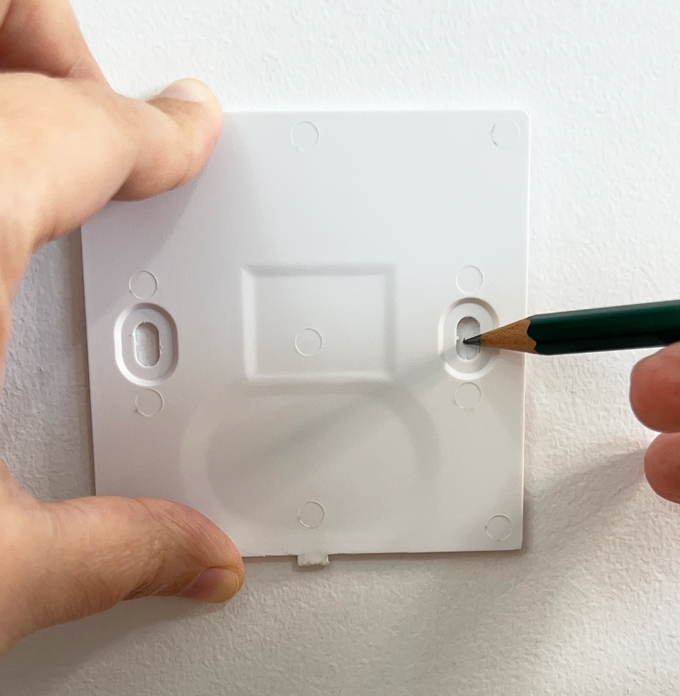

With the inside of the back plate facing you, position it on the wall where you want to mount it. Use a pencil to mark the screw placement.

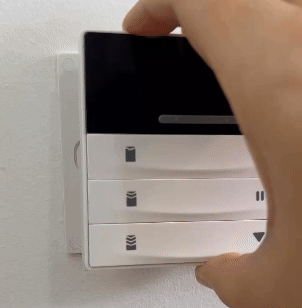

Once the back plate is secured to the wall, slide the top part of the wall remote control into place. Press the bottom part firmly on both sides (left and right) to snap it into the back plate clips.
