25mm series and Wand motors

25mm series and Wand motors


Battery Tubular Motors

Radio specification: ASK 433.92MHz
Electrical parameters: 8.4V DC internal rechargeable battery
Power sources: 5V/1A charger or 2W/15V solar panel

Models

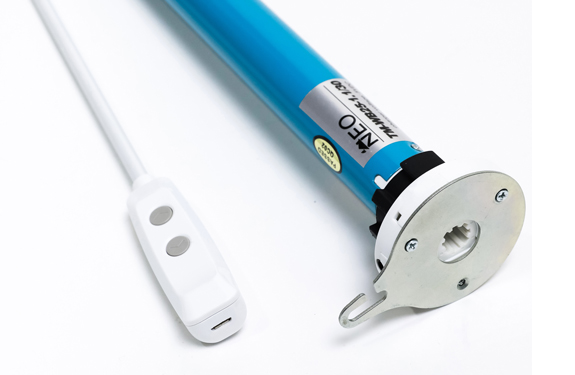

TM-RB25 - micro-USB extension
TM-RB25 - USB-C extension
TM-BRB25 - USB-C extension

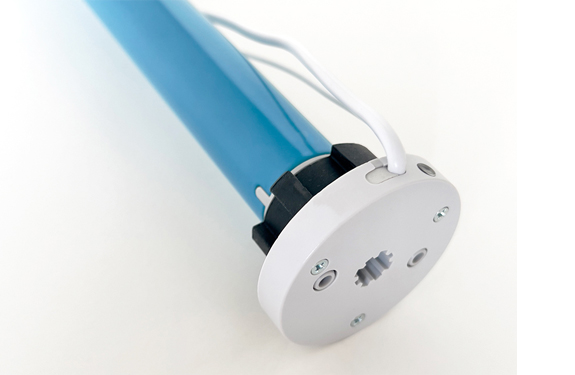

TM-BRB25-CN - USB-C built-in

Instructions






Wand Tubular Motors

Electrical parameters: 8.4V DC internal rechargeable battery
Power sources: 5V/1A charger or 2W/15V solar panel

Models

TM-WOB25-CN - USB-C built-in port
TM-WB25 - Micro-USB port
TM-WB25-CN - USB-C built-in port

Instructions
